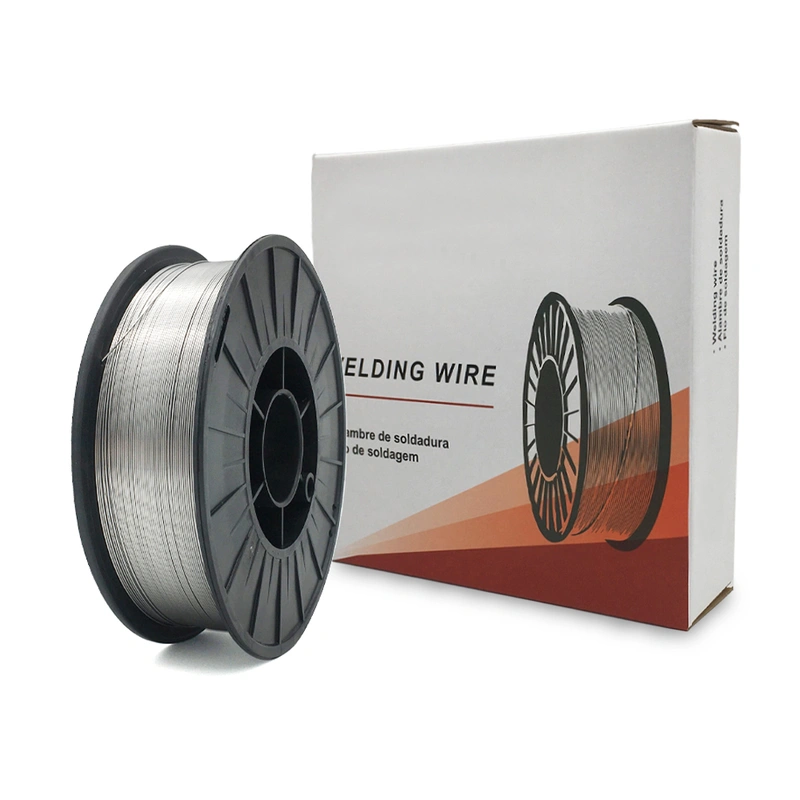

E309LT1-1
AWS A5.22 E309LT1-1/4
EN ISO 17633-A : T 23 12 L P C1 2
Description：
E309LT1-1 is a stainless steel gas shielded flux-cored wire designed for welding of 22%Cr-12%Ni steel (SUS 309S), 18% Cr-8%Ni clad steel and dissimilar materials such as Cr-Mo steel or mild steel to stainless and build-up welding of carbon steel. It provides excellent usability with stable arc, less spattering, good bead appearance. The weld deposit has good crack and high temperature resistance. Used on 22%Cr-12%Ni steel (SUS 309S), 18% Cr-8%Ni clad steel and dissimilar materials welding.
Diameters:
1.2mm, 1.6mm
Typical Mechanical Properties:
Tensile strength(MPa): | 575 |
Yield stress(MPa): | -- |
Elongation(%): | 34 |
Impact values(≥27J/-196℃): | 40 |
Typical Chemical Properties:
C | Mn | P | S | Si | Ni | Cr | Mo | Cu |
0.039 | 2.10 | 0.022 | 0.007 | 0.55 | 12.97 | 23.02 | 0.02 | 0.03 |
Welding Current:(DC+)
Diameter(mm) | 1.2 | 1.6 | |
Current/A | 120-220 | 180-300 | |
Voltage/V | 20-32 | 20-32 | |
Gas speed/(L/Min | 20-25 | 20-25 | |
Note:
1.Shield gas: 100% CO2 or 80% Ar+20% Co2 .
2. Preheat before welding.
3. Interpass temperature: ≤80℃
