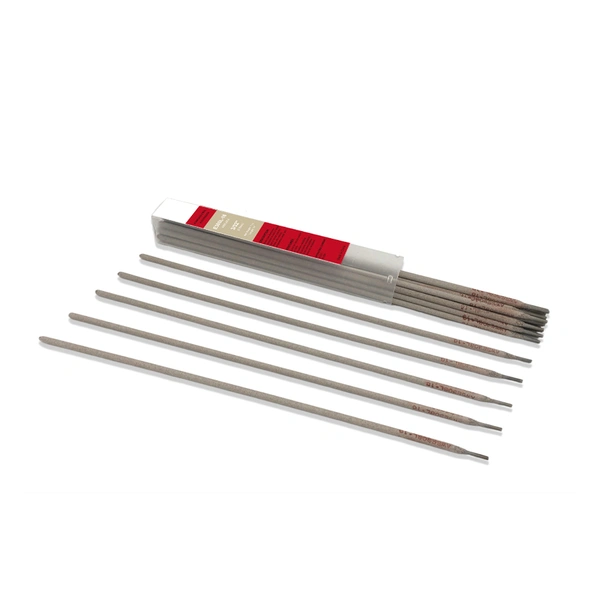

E312-16
AWS A5.4 E312-16
ISO3581-A-E30 10 R
GB/T 983 E312-16
Description：
E312-16 is used for welding type 316L or 318 stainless steels. It has a maximum of .04% carbon content in the weld metal, which reduces the possibility of carbine precipitation and consequent intergranular corrosion. This electrode is widely used in the welding of chemical equipment.
Diameters:
2.5mm, 3.2mm, 4.0mm, 5.0mm.
Typical Mechanical Properties:
Tensile strength(MPa): | 605 |
Yield stress(MPa): | -- |
Elongation(%): | 40 |
Typical Chemical Properties:
C | Mn | P | S | Si | Ni | Cr | Mo | Cu |
0.12 | 1.35 | 0.02 | 0.003 | 0.58 | 9.5 | 29.5 | 0.32 | 0.12 |
Welding Current:(AC/DC±)
Diameter(mm) | 2.5 | 3.2 | 4.0 | 5.0 | |
Current/A | F/H | 60-80 | 80-120 | 100-150 | 140-180 |
Current/A | V/OH | 40-70 | 60-100 | 80-130 | -- |
Note:
1.The electrodes should be baked 1 hours in 300-350℃ before using.
2.Welding in short arc,and swing scope should not excess 2.5 times of the electrode diameter.
