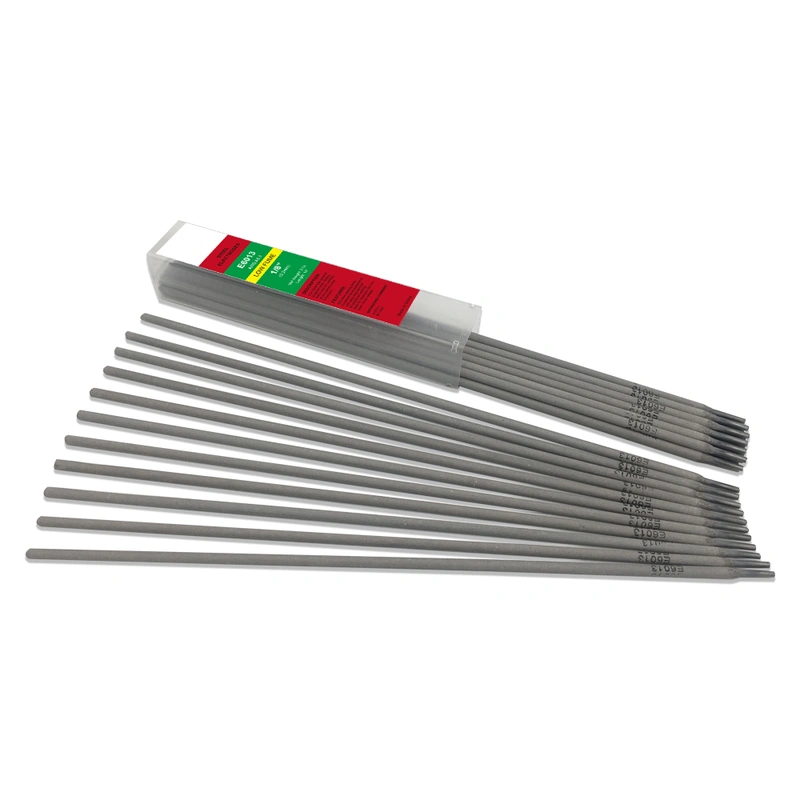

Low Fume Rutile Type General Purpose Welding Rods E6013 LF

E6013 Low Fuming Rutile Type Mild Steel Welding Rods


E6013 LF



AWS A5.1 E6013

ISO2560-A-E38 0 R1 12

GB/T 5117 E4313


Description

E6013 LF

Slag removal of E6013 Grey.jpgTen beads of TecMig E6013.jpg



AWS A5.1 E6013

ISO2560-A-E38 0 R1 12

GB/T 5117 E4313



Description

It is a rutile type general purpose electrode for all positional welding. Suitable for welding of low carbon steel structure, especially for the welding of thin plate steel with short discontinuous weld and requirement of smooth welding pass. Featured with 30% decrease in welding fume.

AC & DC.



Diameters:

1.6mm,2.0mm, 2.5mm, 3.2mm, 4.0mm, 5.0mm.



Typical Mechanical Properties:

Tensile strength(MPa):

490

Yield stress(MPa):

396

Elongation (%):

 26

Impact values(≥47J/-20):

82



Typical Chemical Properties:

C

Mn

P

S

Si

Ni

Cr

Mo

V

0.08

0.43

0.026

0.021

0.21

0.04

0.011

0.007

0.009



Welding Current: (AC/DC+)

Diameter(mm)

2.5

3.2

4.0

5.0

Current/A

F/H

60-90

80-130

150-190

180-250

Current/A

V/OH

50-80

80-110

130-170

--



Note:

No need to bake before using, but please bake 30-60 minutes in 150 if the electrodes is humid.
