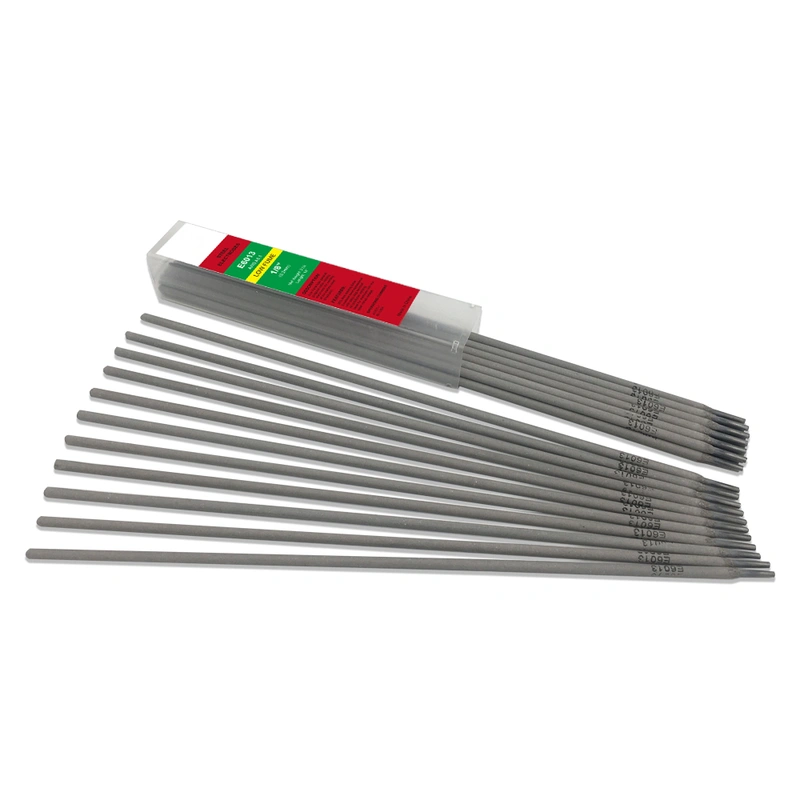

E6013 General Purpose Rutile Type Mild Steel Welding Rods


E6013



AWS A5.1 E6013

ISO2560-A-E38 0 R1 12

GB/T 5117 E4313


Description

E6013



AWS A5.1 E6013

ISO2560-A-E38 0 R1 12

GB/T 5117 E4313



Approved by:

ABS CCS LR CE



Description

It is a rutile type general purpose electrode for all positional welding. Suitable for welding of low carbon steel structure, especially for the welding of thin plate steel with short discontinuous weld and requirement of smooth welding pass. AC & DC.



Diameters:

1.6mm,2.0mm, 2.5mm, 3.2mm, 4.0mm, 5.0mm.



Typical Mechanical Properties:

Tensile strength(MPa):

490

Yield stress(MPa):

396

Elongation (%):

 26

Impact values(≥47J/-20):

82



Typical Chemical Properties:

C

Mn

P

S

Si

Ni

Cr

Mo

V

0.08

0.43

0.026

0.021

0.21

0.04

0.011

0.007

0.009



Welding Current: (AC/DC+)

Diameter(mm)

2.5

3.2

4.0

5.0

Current/A

F/H

60-90

80-130

150-190

180-250

Current/A

V/OH

50-80

80-110

130-170

--



Note:

No need to bake before using, but please bake 30-60 minutes in 150 if the electrodes is humid.
