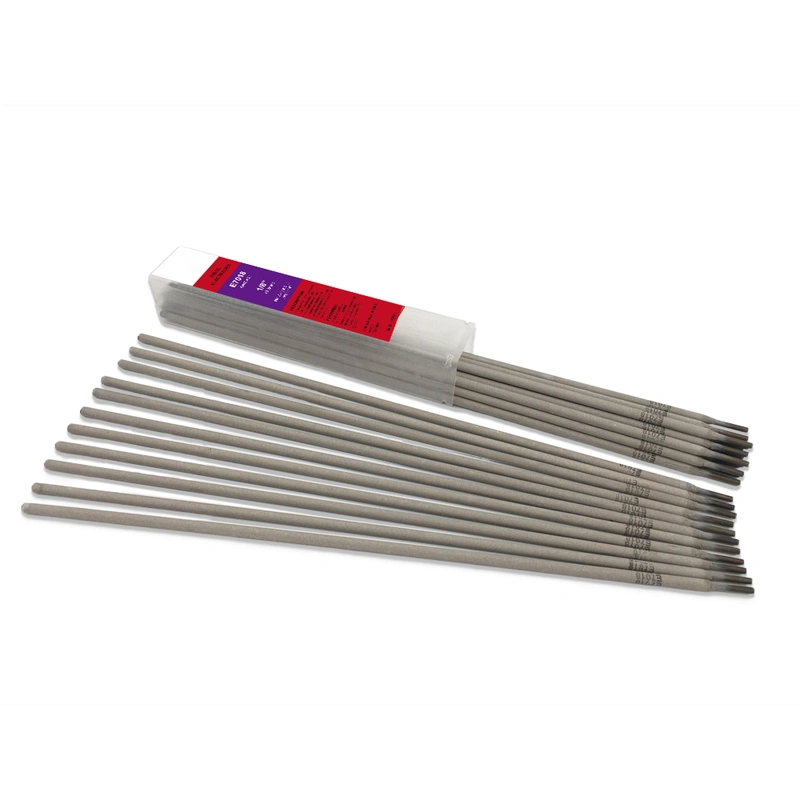

180% High Efficiency Iron Powder Gravity Welding Rods E7024

E7024 180% Deposition Rate High Efficiency Steel Welding Rods

E7024



AWS A5.1 E7024

EN ISO 2560-A E42 0 RR 7 4

Description

E7024



AWS A5.1 E7024

EN ISO 2560-A E42 0 RR 7 4



Approved by:

ABS BV CCS DNV GL KR LR NK



Description

A rutile, iron powder and gravity type electrode with high welding efficiency (180%). Flat and flat fillet welding on carbon steel and low alloy steel. AC & DC



Diameters:

3.2mm, 4.0mm, 5.0mm.



Typical Mechanical Properties:

Tensile strength(MPa):

570

Yield stress(MPa):

502

Elongation (%):

 27

Impact values(≥47J/0):

75



Typical Chemical Properties:

C

Mn

P

S

Si

Ni

Cr

Mo

V

0.067

0.75

0.023

0.016

0.43

0.008

0.026

0.005

0.016



Welding Current:(AC/DC+)

Diameter(mm)

2.5

3.2

4.0

5.0

Current/A


--

120-150

160-200

220-250





Note:

1.The electrodes must be baked 1-2 hours in 350-450 before using.

2. Rusty, oil stains, water and other impurity on the weld parts should be cleaned before welding.
